Transformers are fundamental to electrical power systems. A step up transformer increases voltage while a step down transformer decreases voltage. Understanding their differences is essential for proper equipment selection.
What is a Step Up Transformer?
A step up transformer converts lower input voltage to higher output voltage. The secondary winding has more turns than the primary winding. Common applications:
- Converting 230V single phase to 415V three phase
- Powering imported equipment requiring higher voltage
- Power transmission — stepping up generator voltage for long-distance transmission
- Industrial equipment requiring non-standard voltages
What is a Step Down Transformer?
A step down transformer converts higher input voltage to lower output voltage. The primary winding has more turns than the secondary. Common applications:
- Converting 415V three phase to 230V single phase
- Reducing voltage for electronic control circuits
- Power distribution — stepping down transmission voltage for consumer use
- Adapting imported equipment to Indian voltage standards
Types of Transformers
Auto Transformer

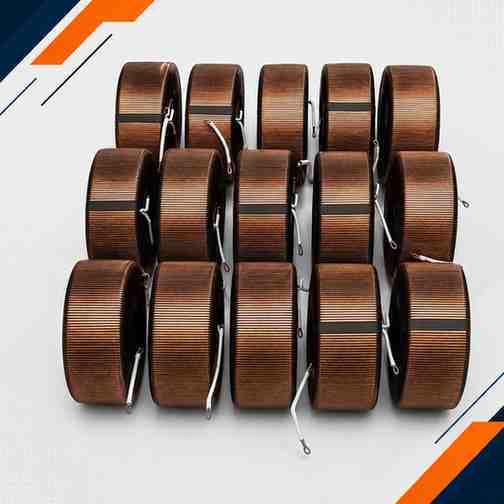

An auto transformer uses a single winding shared between primary and secondary. More compact and economical than dual-winding transformers. A variable auto transformer (variac) allows adjustable output voltage and is the key component inside servo stabilizers.
Isolation Transformer
An isolation transformer provides galvanic isolation between input and output using separate primary and secondary windings. Used for safety, noise filtering, and protecting sensitive equipment from mains disturbances.
Three Phase Transformer
A three phase transformer handles three-phase AC power. Available in step up, step down, and isolation configurations. Used in industrial power distribution, motor drives, and heavy machinery.
Step Up vs Step Down Comparison
| Feature | Step Up | Step Down |
|---|---|---|
| Voltage | Low → High | High → Low |
| Winding Turns | Secondary > Primary | Primary > Secondary |
| Current | Output current lower | Output current higher |
| Common Use | Power transmission, voltage boost | Power distribution, equipment adaptation |
ServoKai Custom Transformers
ServoKai System manufactures custom step up transformers, step down transformers, isolation transformers, and auto transformers in single phase and three phase configurations from 1 kVA to 500+ kVA. All units use CRGO-grade core material and precision copper windings. Request a custom transformer quote →
