Best Seller
3-phase

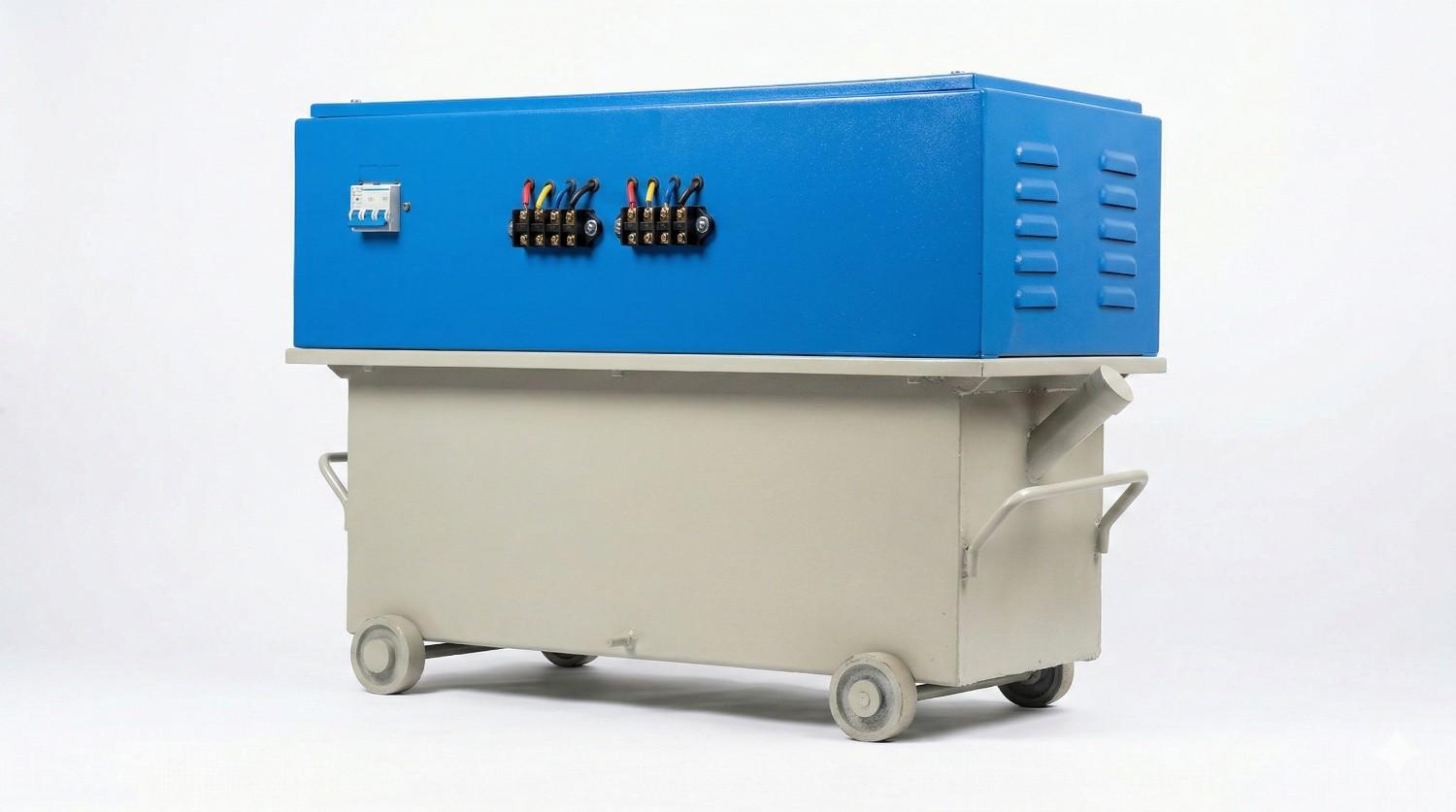

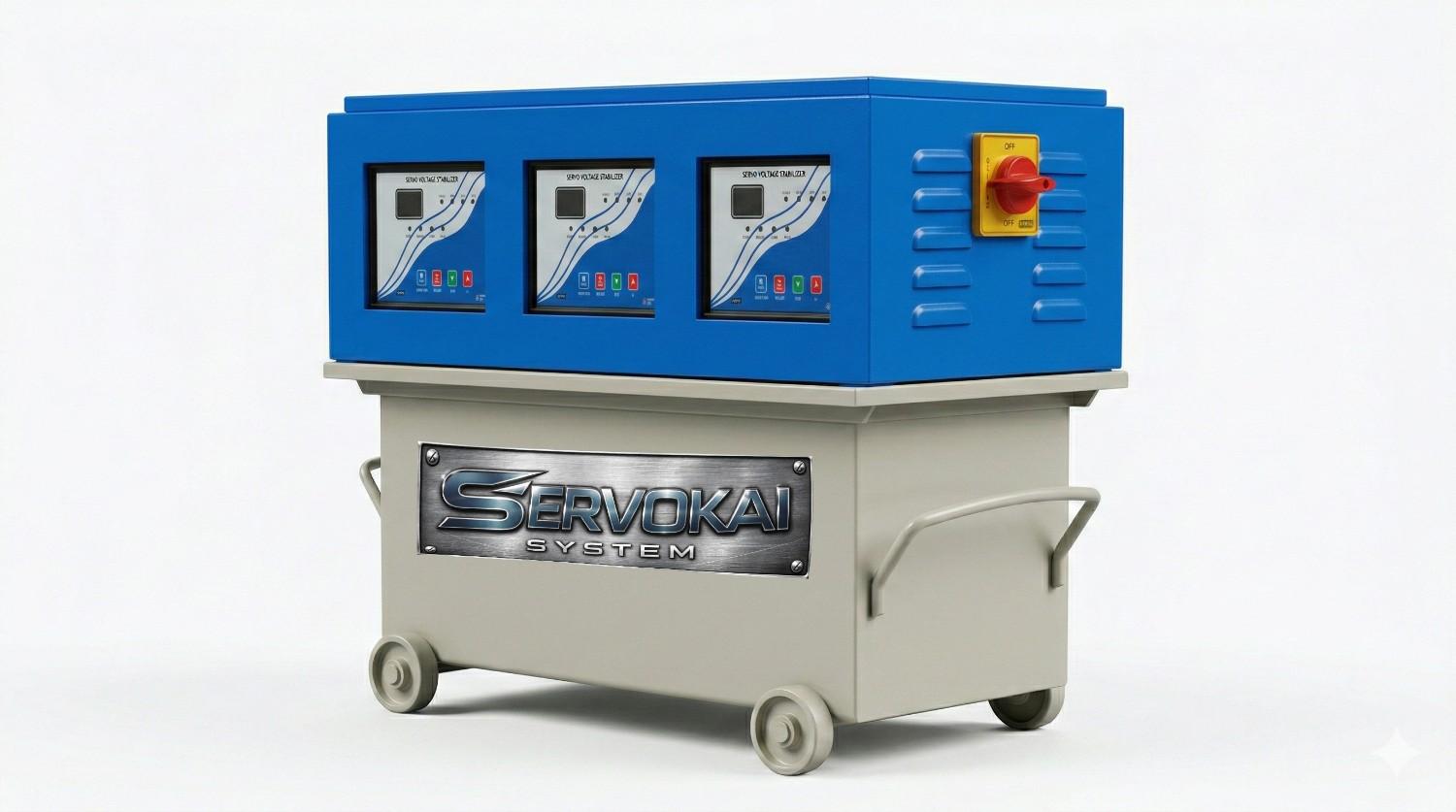

3 Phase Oil Cooled Servo Stabilizer — 100 KVA
The 3 Phase Oil Cooled Servo Voltage Stabilizer is a high-performance automatic voltage regulation system designed to provide stable, precise and balanced output for three-phase electrical loads. Especially suitable for heavy-duty and continuous industrial applications where voltage fluctuations are frequent. The transformer and variac are immersed in high-grade insulating transformer oil for excellent cooling, electrical insulation and overheating protection during prolonged operation.
ISO 9001:2015 Certified1-Year GuaranteeFactory-Direct PricingPan-India Supply
Key Features
- Step-less servo motor based voltage correction
- Oil-cooled transformer for superior heat dissipation
- Phase-to-phase high & low cut-off protection
- Emergency servo stabilizer by-pass system
- Time delay and short-circuit protection
- Single phase preventer protection
- Over AMP load cut-off protection
Technical Specifications
Capacity100 KVA
Phases3 Phase, 4 Wire
Input Voltage170 – 280 Volts (P-N) / 300 – 480 Volts (P-P)
Output Voltage415V ±1%
Frequency50 Hz ± 0.5%
CoolingOil Natural Air Natural (ONAN)
Efficiency> 98%
Guarantee1 Year
CustomizationCustomizable as per customer requirement
